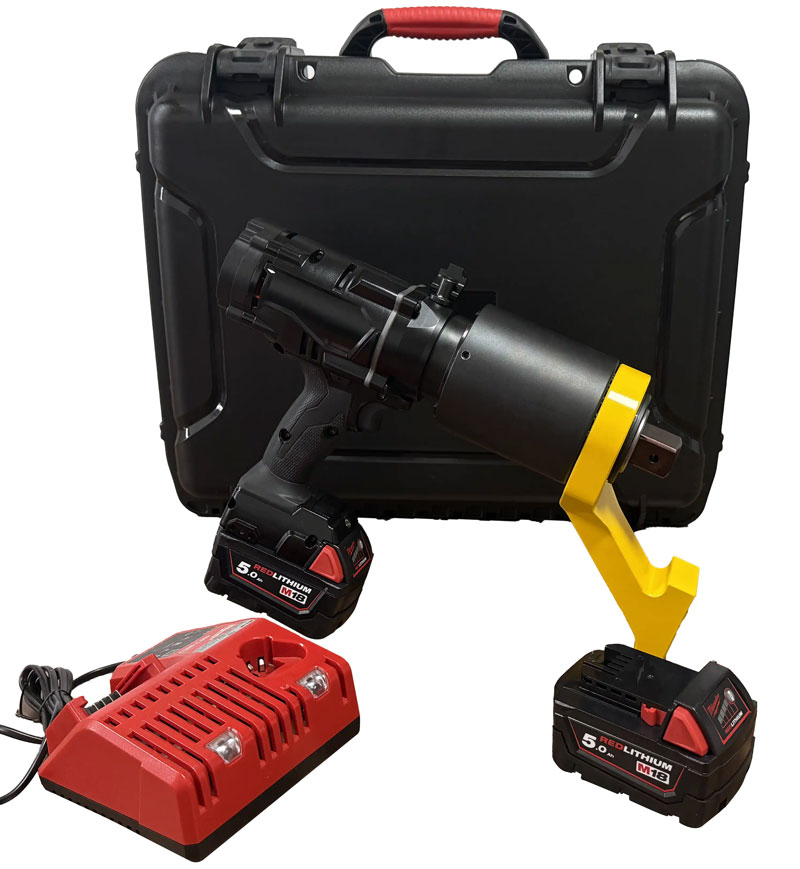

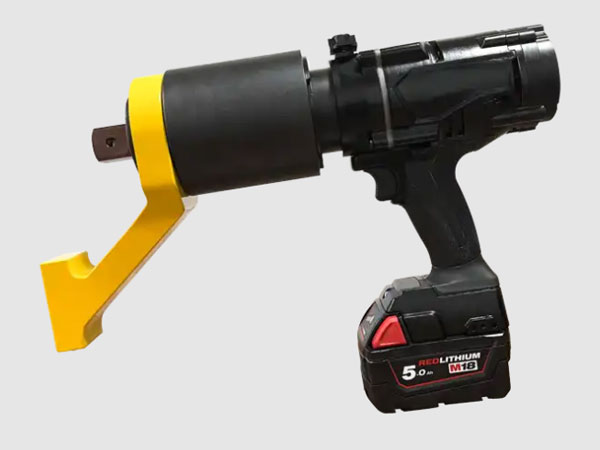

BTW Battery Torque Wrench
High power brushless DC motor, strong power and stable outputTrue color high-definition display, torque adjustment every 10NmWireless WIFI module, which can realize fastening data transmission, recording and downloading
Applicable Scenarios
BTW Single speed Product Features and Advantages:
*Driven by a new advanced brush-less motor, the BTW reaches torques very precisely and efficient.
*Humanization Designing: Programmable preset torque settings, Large size LCD screen dynamic display
*Accurate: High repeatability of +/-2%, simple re-calibration system helps tool delivery torque to apply any applications
*Enough Power: Red-lithium battery packs help bolting more nuts
*Gear Technology: Advanced gear design technology and high strength alloy steel makes tool lighter,durable and faster
*Wide-Range: Torque up to 8,000Nm
*More Functions: Torque real time display+Angle turn+number of angle turns+number of nuts optional
*Smart APP: Optional Wireless Bluetooth Transfer, data recording system storage millions of applications, tracking results
*Close-loop system: Optional Transducerized system. Built in transducer increase accuracy to +/-1%
*BTW is Bluetooth and wireless compatible and its connectivity with C-Series Smart Socket for transducer verified joint calibration (optional)

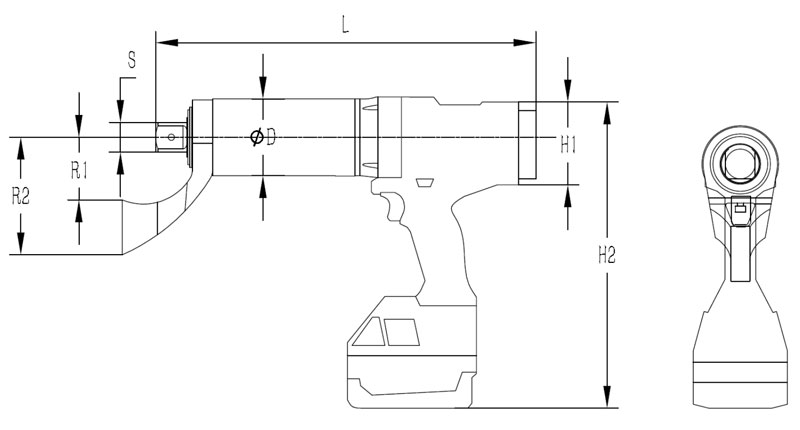

BTW Battery Torque Wrench Measurement:
product structure:
BTW Battery Torque Wrench applications Wide Range of Applications:
It has a wide range of applications and is suitable for industries such as automotive manufacturing and maintenance, wind power, rail transit, oil and gas, heavy machinery and construction machinery aerospace, power and energy, shipbuilding, tank/armored vehicle maintenance,and Bridges.
Case Show:
Model and specification introduction:
| Model | Min torque (N.m) |
Max torque (N.m) |
S | D | L | H1 | H2 | R1 | R2 | Weight | Max speed |
| mm | （Kg） | rpm | |||||||||
| BTW-05 | 100 | 500 | 3/4＂ | 60 | 270 | 76 | 245 | 53 | 102 | 4.3 | 26 |
| BTW-10 | 130 | 1000 | 3/4＂ | 74 | 277 | 76 | 245 | 60 | 115 | 4.8 | 18 |
| BTW-15 | 180 | 1500 | 1＂ | 76 | 317 | 76 | 245 | 66 | 135 | 5.2 | 8 |
| BTW-20 | 250 | 2100 | 1＂ | 76 | 317 | 76 | 245 | 66 | 135 | 5.5 | 6 |
| BTW-30 | 480 | 3100 | 1＂ | 86 | 340 | 76 | 245 | 78 | 145 | 7.5 | 3.5 |
| BTW-40 | 650 | 4000 | 1＂ | 95 | 350 | 76 | 245 | 78 | 145 | 9.5 | 3.2 |
| BTW-50 | 850 | 5000 | 1-1/2＂ | 103 | 355 | 76 | 245 | 78 | 145 | 10 | 2.5 |
| BTW-60 | 1100 | 6000 | 1-1/2＂ | 110 | 400 | 76 | 245 | 90 | 155 | 12 | 1.8 |
| BTW-80 | 1900 | 8000 | 1-1/2＂ | 115 | 415 | 76 | 245 | 90 | 155 | 14 | 1.5 |
