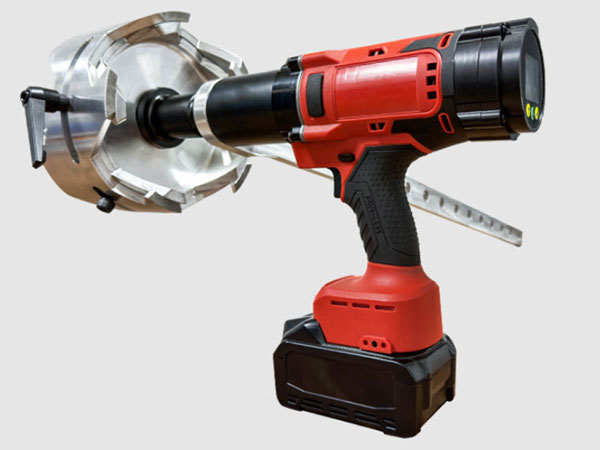

Electric Valve Actuator – open close valve
High Torque, Lightweight, Easy to Operate, No Impact Force, Low Noise, Suitable for Prolonged Use. ◉ Smart Valve Torque Detection. ◉ Traceability: Records and transmits valve operation data (torque values, timestamps, operator IDs, workstations) for efficient enterprise management. Supports editing work orders, assigning operator permissions, and tracking maintenance history.
High Torque · Lightweight · Easy to Operate · No Impact Force · Low Noise · Suitable
Product Parameters
* Torque Range: TAC's precision-controlled valve torque wrenches cover 100Nm to 8000Nm, with custom solutions available for special high-torque requirements. * Gearbox Design: Optional manual transmission solutions available. * Smart Valve Torque Detection: Intelligently detects peak torque during valve opening/closing to protect threads and prevent over-torque damage. Assists factory management in recording accurate torque values for valve operation. Provides early warning and automatic shutdown if obstructions are detected, avoiding unnecessary losses. Delivers stable torque output for smooth valve operation, preventing sediment leakage. * Intelligent Safety Management: Advanced safety features include torque limitation, rotation count limit, overload protection, overheating protection, and scheduled maintenance reminders—ensuring reliable and worry-free operation. * Remote Control: Wireless remote monitoring and control minimize operator errors and enhance tool safety. Advanced Wi-Fi functionality enables remote operation in any environment—no internal network required (supports outdoor use without internet). * Traceability: Records and transmits valve operation data (torque values, timestamps, operator IDs, workstations) for efficient enterprise management. Supports editing work orders, assigning operator permissions, and tracking maintenance history. * High-Quality Components: Imported motor: Durable, ultra-quiet, stable performance for prolonged use with excellent heat dissipation (minimal maintenance needed). * Planetary gear reducer: High-precision, ultra-strength design—compact yet robust for demanding applications. * Custom Solutions: TAC offers tailored tools for specialized valve configurations (e.g., simplified controls for outdoor use). Torque selection guide: For manual handling by 1–2 adults: 500Nm electric wrench. With external force assistance: 1000Nm suffices. Our expert R&D team delivers adaptable solutions for unique spatial constraints—customized to your exact needs.
| Model | Min torque(N.m) | Max torque(N.m) | S | D | L | H1 | H2 | R1 | R2 | Weight | Max speed |
| mm | （Kg） | rpm | |||||||||
| BTW-FM-005 | 100 | 500 | 3/4＂ | 60 | 270 | 76 | 245 | 53 | 102 | 4.3 | 26 |
| BTW-FM-010 | 130 | 1000 | 3/4＂ | 74 | 277 | 76 | 245 | 60 | 115 | 4.8 | 18 |
| BTW-FM-015 | 180 | 1500 | 1＂ | 76 | 317 | 76 | 245 | 66 | 135 | 5.2 | 8 |
| BTW-FM-020 | 250 | 2100 | 1＂ | 76 | 317 | 76 | 245 | 66 | 135 | 5.5 | 6 |
| BTW-FM-030 | 480 | 3100 | 1＂ | 86 | 340 | 76 | 245 | 78 | 145 | 7.5 | 3.5 |
| BTW-FM-040 | 650 | 4000 | 1-1/2＂ | 95 | 350 | 76 | 245 | 78 | 145 | 9.5 | 3.2 |
Valve testing kit, Open close valve.
“We Only Do the Real Thing” — The Electric Valve Actuator has become a trusted choice for industrial fastening operations with its core advantages of precision, durability, and intelligence!
TAC supplies various torque tools:
✅ Automobile Manufacturing & Maintenance: Engine assembly, tire nut tightening, chassis component installation
✅ Energy Industry: Wind power equipment maintenance, bolt fastening for power and energy facilities
✅ Transportation: Rail transit, shipbuilding, aerospace precision assembly
✅ Heavy Machinery: Construction machinery, tank/armored vehicle maintenance, bridge construction
✅ Chemical & Industry: Petroleum and natural gas pipeline installation, heavy machinery assembly
Brand Guarantee
- Quality Certification: CE certified, core components imported, factory-delivered after rigorous testing
- After-Sales Support: Professional technical team provides calibration guidance and lifetime supply of maintenance parts
- Customization Service: Supports personalized customization of torque range and functional modules (Bluetooth/WIFI), Torque tool suppliers, factories.
- Consultation Hotline: +86 400-660-1757
- Contact Us: sales@tacwrench.com
